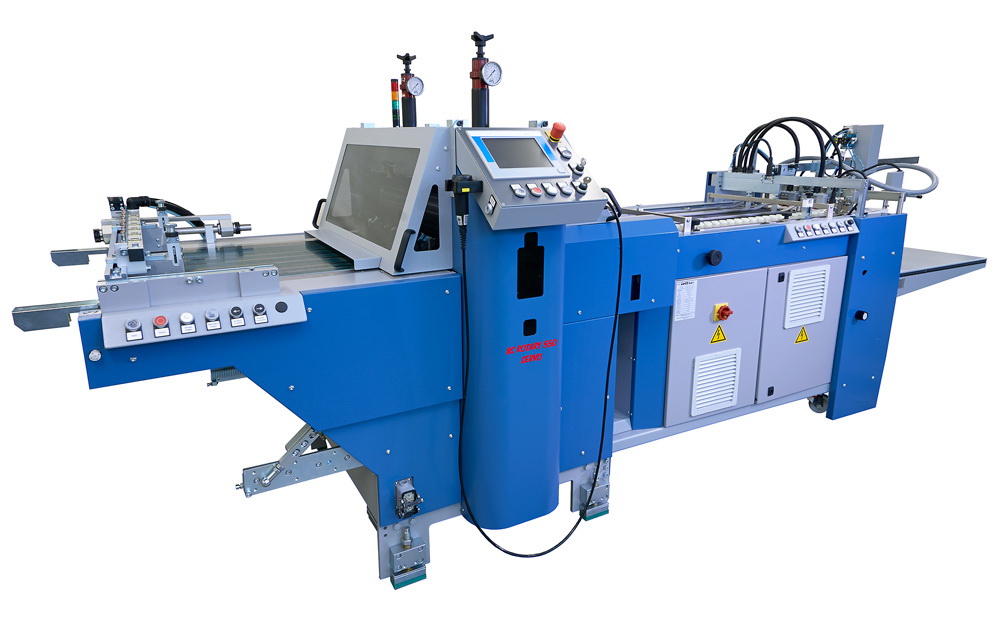

BSR 550 Servo Rotary die-cutter with flat pile feeder
Individual products are fed to the punching area from the flat pile feeder and punched with the rotating flexibe die. The sheet alignment on the side is performed with a register table with ball rail.
The position accuracy in the direction of production is realised with a positioner roller system that causes the sheets to pass the punching punching cylinder with high precision without stopping.
Inline configuration of the die-cutting machine with machines interfaced downstream such as folding machines, mailing systems and packaging machines is the most efficient way of carrying out multiple high-performance steps in one operation.
Automatic deflection of waste matrix and simultaneous separation of inner cuts increase production in addition.
The format range of the BSR 550 Servo is from 550 x 750 mm to 210 x 210 mm. Sheets having a product thickness between 0.5 mm and 80 g/m2 can be processed. The maximum capacity of the machine is 12,000 sheets/h.
| Capacity | max. 12'000 sheets/h, 165 m/min (depending on format and quality) |
|---|---|
| Flat pile feeder F550 | with suction belt |
| Feed | vacuum belt and ball rail, length 1'500 mm |
| Sheet positioning | 2 pairs of postion roller |
| Product rejection | for sheets which are out of the register tolerance |
| Upper/lower tool admission | magnetic cylinder for flexible dies |
| Punch cylinder circunference | 813 mm/ 32" |
| Clearance | 1,2 mm with counter plate 1,0 mm |
| Exit hight | 940 mm |
| Working width | max. 550 mm |
| Sheet size | min. 297 x 210 mm, max. 550 x 750 mm |
| Die-cutting size | min. 55 x 65 mm, max. 530 x 730 mm |
| Sheet execution | vacuum belt and roller strips |
| Product thickness | min. approx. 80 g/m², max. approx. 0,5 mm |
| Stripping station | stripping elements with integrated rollers and air blast (partially timed) |
| Transportable with | rollers |
| Space requirement | approx. 4'100 mm x 1'500 mm (L x B) |
| Weight | approx. 3'000 kg |
| Compressed air | 6 bar (provided on site) |
| Display | touch screen |
| Drives | servo motors |
| Power supply | 3 x 400 VAC / N / PE 50/60Hz / 32A (CEE) |
| Control voltage | 24 Volt DC |
| Electrical capacity | 16 kW |

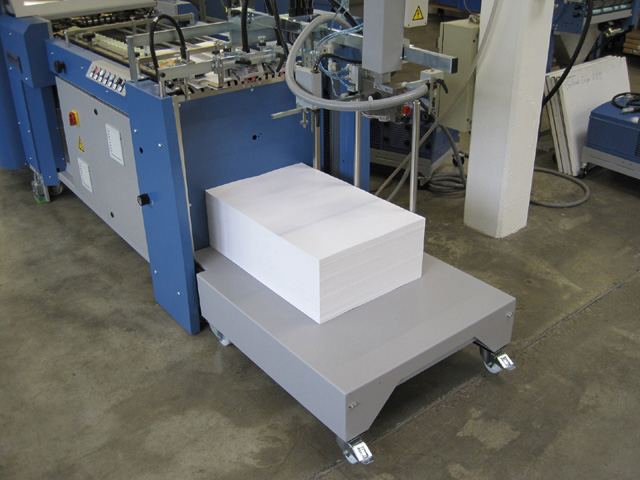

Pre-loading carts
for time-saving filling of the flat pile feeder

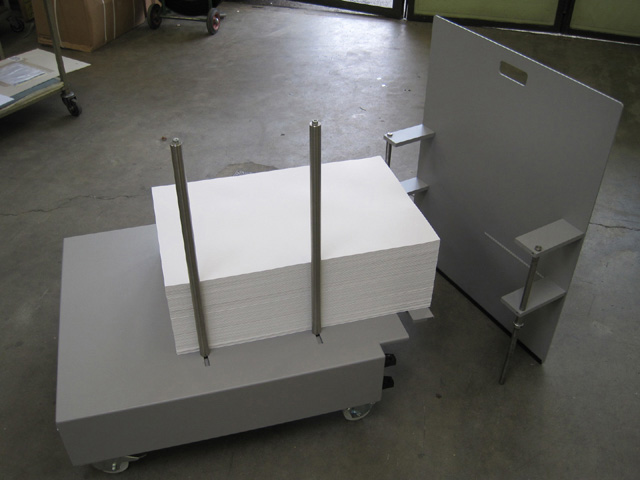

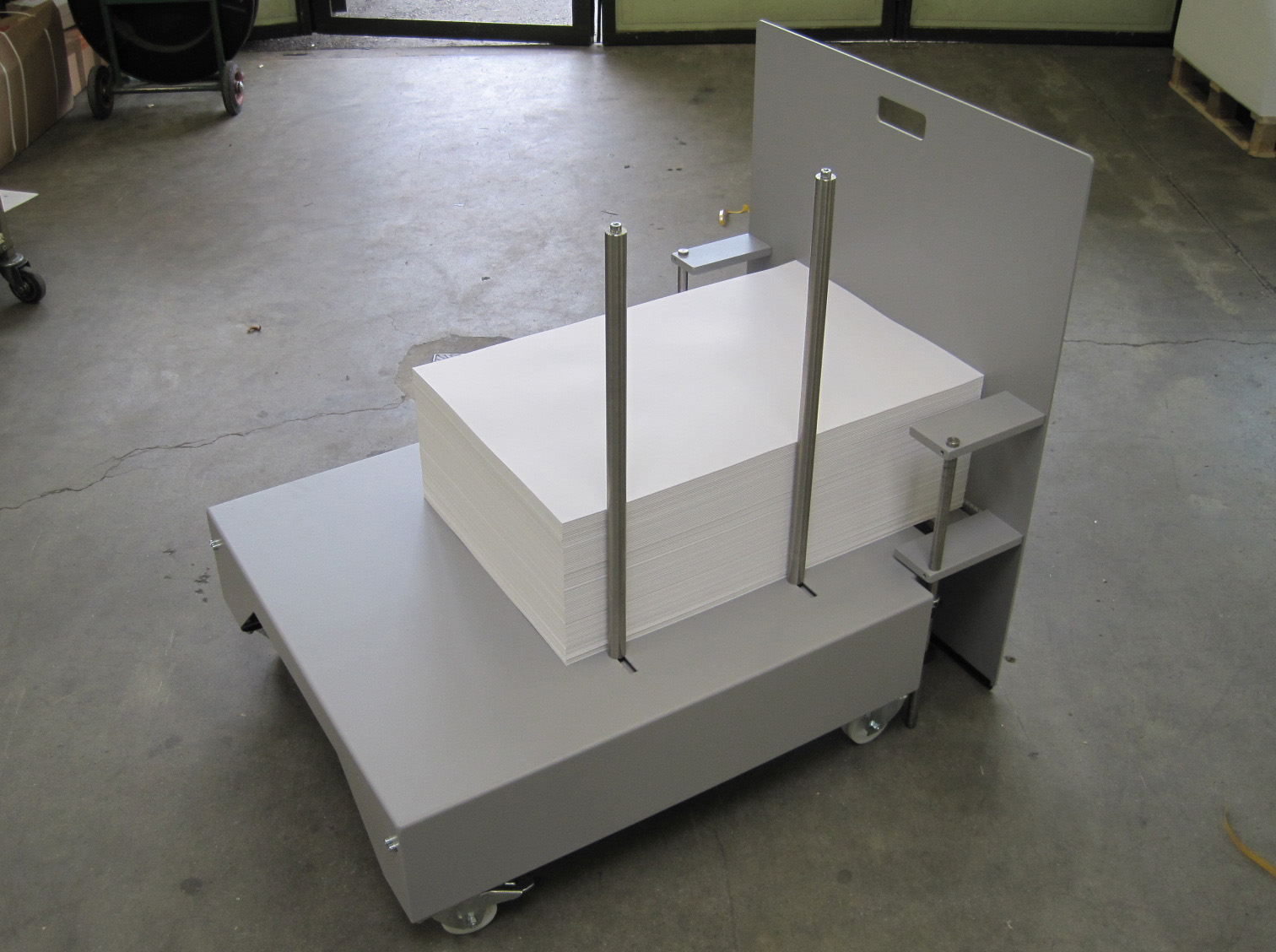

Pre-loading carts are filled in advance during ongoing production. A cart is replaced once empty.
The short changeover time and simple handling increase production efficiently.
SH 550 Shredder
To reduce waste volume
Punch grid shredder to rotary die-cutter BSR 550 Servo with flat pile feeder.
