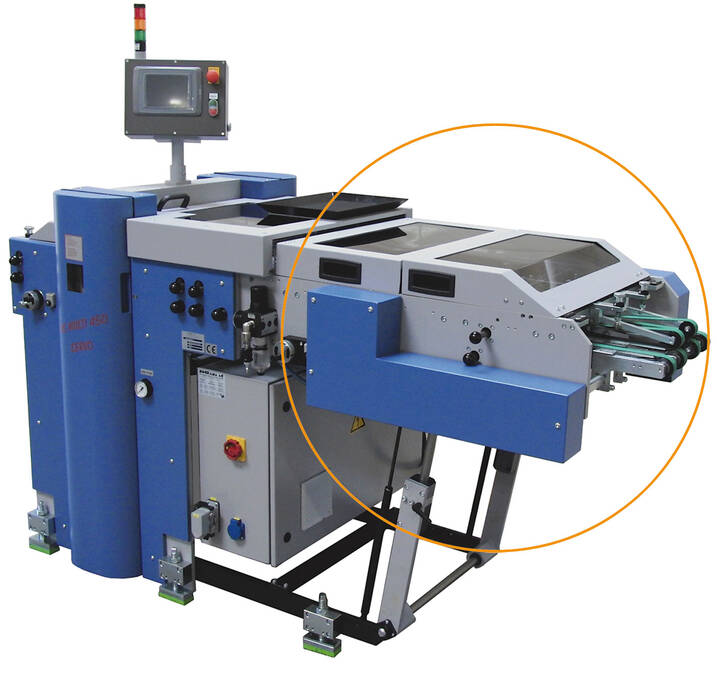

BS MULTI 450 / *750 Servo with front cut unit at infeed
The BSM 750 Servo with integrated front trim lends the booklet its final form.
Front trim, head and foot trim, and blank separation are performed in one operation.
| Capacity | max. 8'000 cycles/h up to 2,5 mm product thickness up to 7'000 cycles/h with 2,5 - 3 mm product thickness (depending on format and quality) |
|---|---|
| Drive | servo motor, 3,5 kW |
| Feed | adjustable belt transfer with lower and upper belt, lenght 1'300 mm, swivel area 540 up to 950 mm |
| Exit hight | 940 mm |
| Working with max. | max. 450 mm / min. 45 mm |
| Format min./max. | see separate data sheet BS MULTI |
| Max. product thickness | perforation up to 2 mm, filing-hole punching up to 5 mm, cutting up to 5 mm, die-cutting up to 2 mm (depending on format and quality) |
| Product alignment | stop- and side adjustment elements pneumatically operated |
| Timing control | pulse-independent by photo cell |
| Tool attachment | attachment for filing-hole and cutting tools, profile insert for perforating-tools, attachment for die-cutting-tools |
| Compressed air | 6 bar (provided on site) |
| Transportable with | pallet truck |
| Space requirement | approx. 2'200 1'100 / *1'200 mm (L x W) |
| Weight | approx. 1'150 kg / *1'350 kg |
| Power supply | 3 x 400VAC / N / PE / 50/60Hz / 32A |
