LABELEXPO
Die-cutting, counting and delivering of different labels
As a novelty BOGRAMA will show the Label-Line in Brussels.

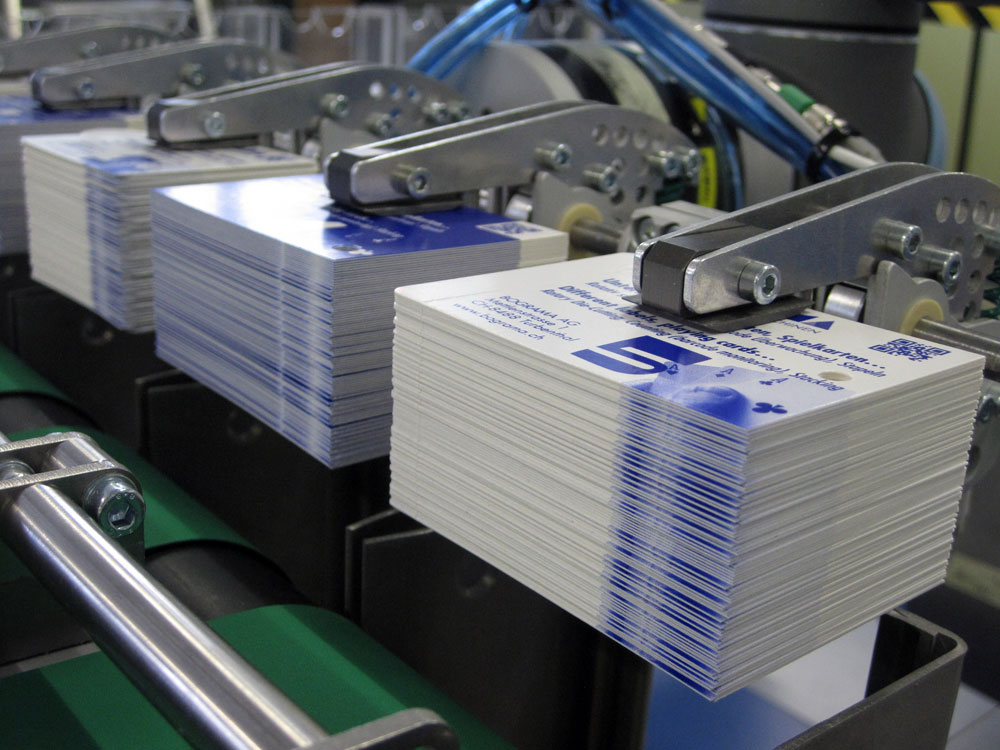

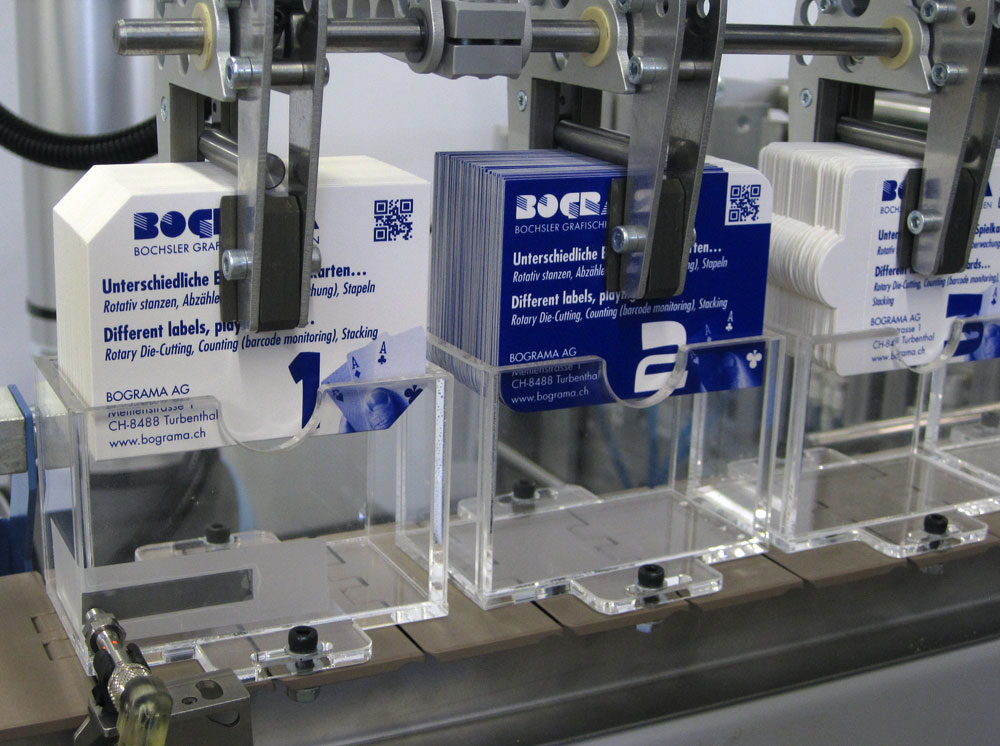

This line will process labels, playing cards, and similar products, directly from printed sheets, using the BOGRAMA BSR 550 Servo Rotary die-cutter. With the „Dynamic Alignment" (auto register correction) each sheet is aligned laterally. This ensures a consequent cutting accuracy of +/- 0.1 mm also with digitally printed sheets. Integrated barcode monitoring allows both, the consistent monitoring of the production as well as the tracking of products. The die-cutting process has integral stripping and scrap removal. The finished products are stacked in counted piles of sorted products and packed into boxes, using a smart robot solution.
We will produce the labels at Labelexpo with:
- Rotary Die-Cutter BSR 550 Servo with Flat Pile Feeder
- Transfer Unit UEB 550 B

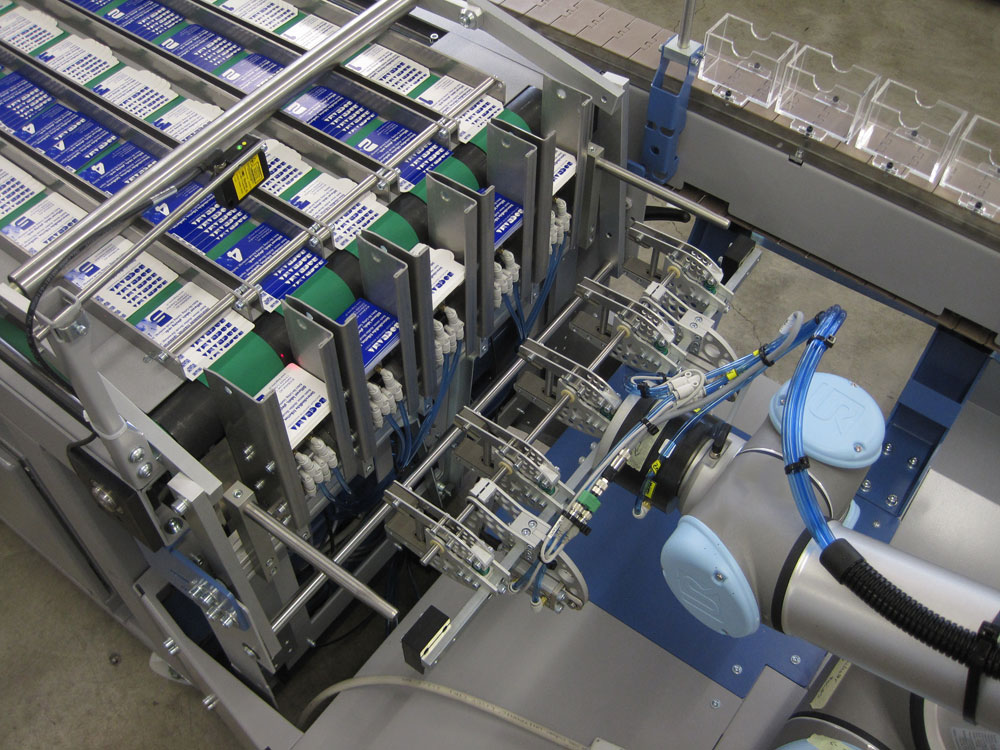

- Automated Sorting- and Packing System
Your benefits:
- Automated in-line and multiple-up production
- Compact solution
- Quality and production monitoring
- Performance: 5,000 cycles/h = 125,000 labels; 100 labels per box
