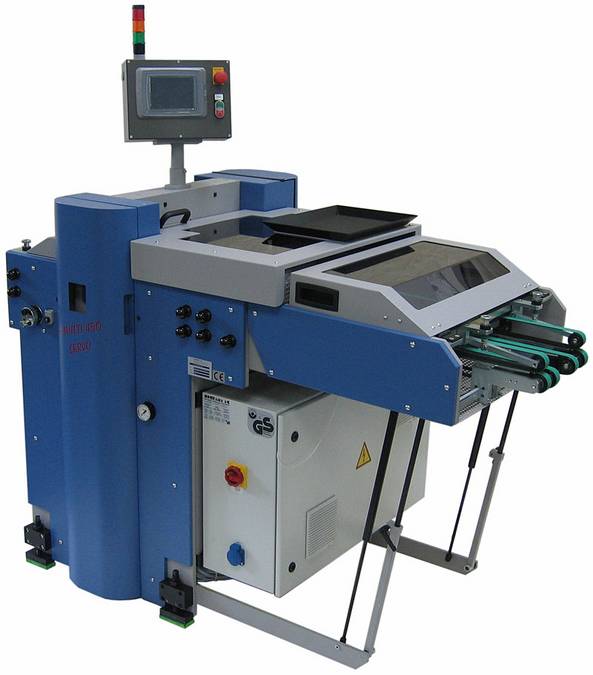

BS MULTI 450 / *750 Servo punch machine
The most universal and most sold model by far for the mid capacity range to 10,500 cycles/h.
- Simple operation from touchscreen
- Integrated controller for infeed hole punching
Available in two working widths.
Capacity | max. 10'500 cycles/h (depending on format and quality) |
---|---|
Drive | servo motor, 3,5 kW |
Feed | adjustable belt transfer with lower and upper belts |
Feed length | 900 or 450 mm |
Feed swivel area | 900 mm length = 540 - 940 mm 450 mm length = 760 - 940 mm |
Exit hight | 940 mm |
Working width | max. 450 mm / *680 mm |
Format | see separate data sheet format |

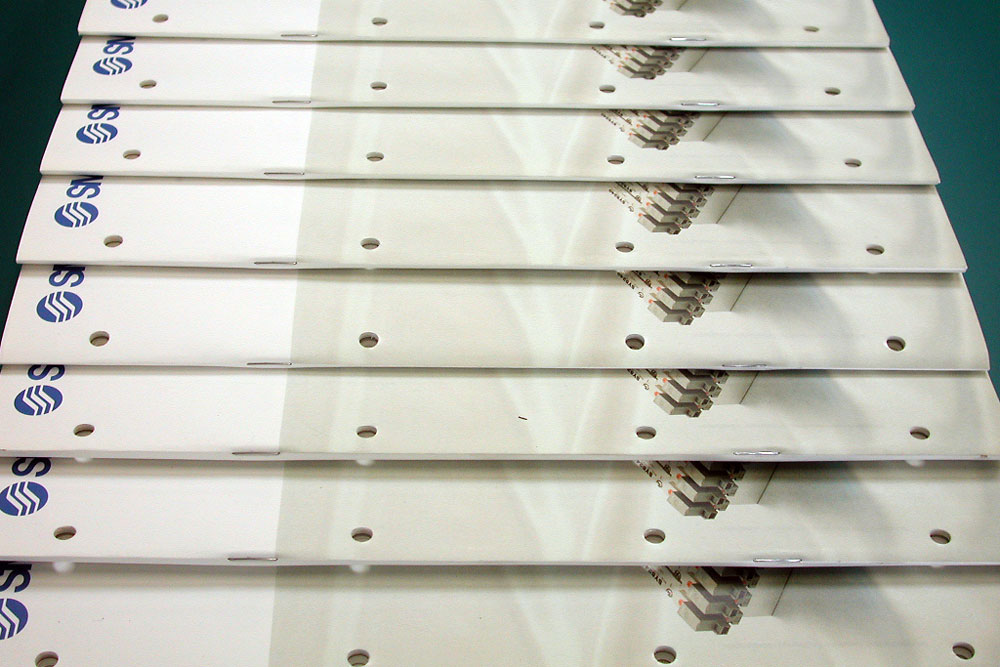

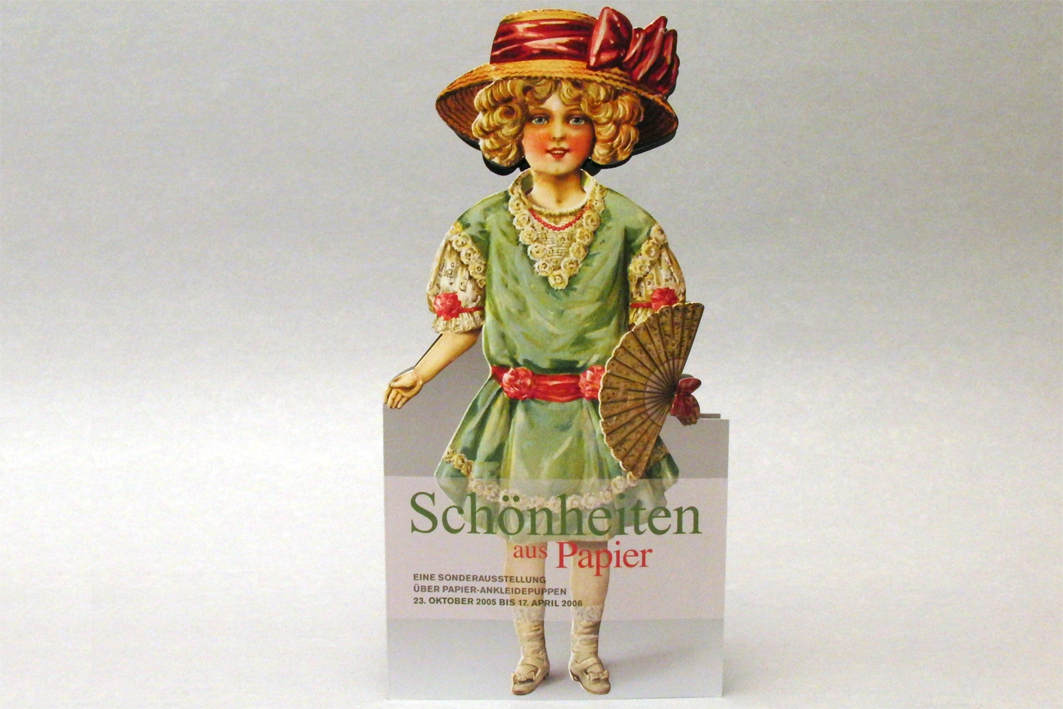

Max. product thickness | perforation up to 2 mm, filing-hole punching up to 5 mm, cutting up to 5 mm, die-cutting up to 2 mm (depending on format and quality) |
Product alignment | stop- and side adjustment elements |
Timing control | pulse-independent by photo cell |
Tool attachment | attachment for filing-hole and cutting tools, profile insert for perforating-tools, attachment for die-cutting-tools |
Compressed air | 6 bar (provided on site) |
Transportable with | pallet truck |
Space requirement | approx. 1'800 or 1'350 mm x 1'100 mm / *1'200 mm (L x B) |
Weight | approx. 800 kg / *1'350 kg |
Power supply | 3 x 400VAC / N / PE / 50/60Hz / 32A |
